120 lesson: work out where the robot is from the drive wheels

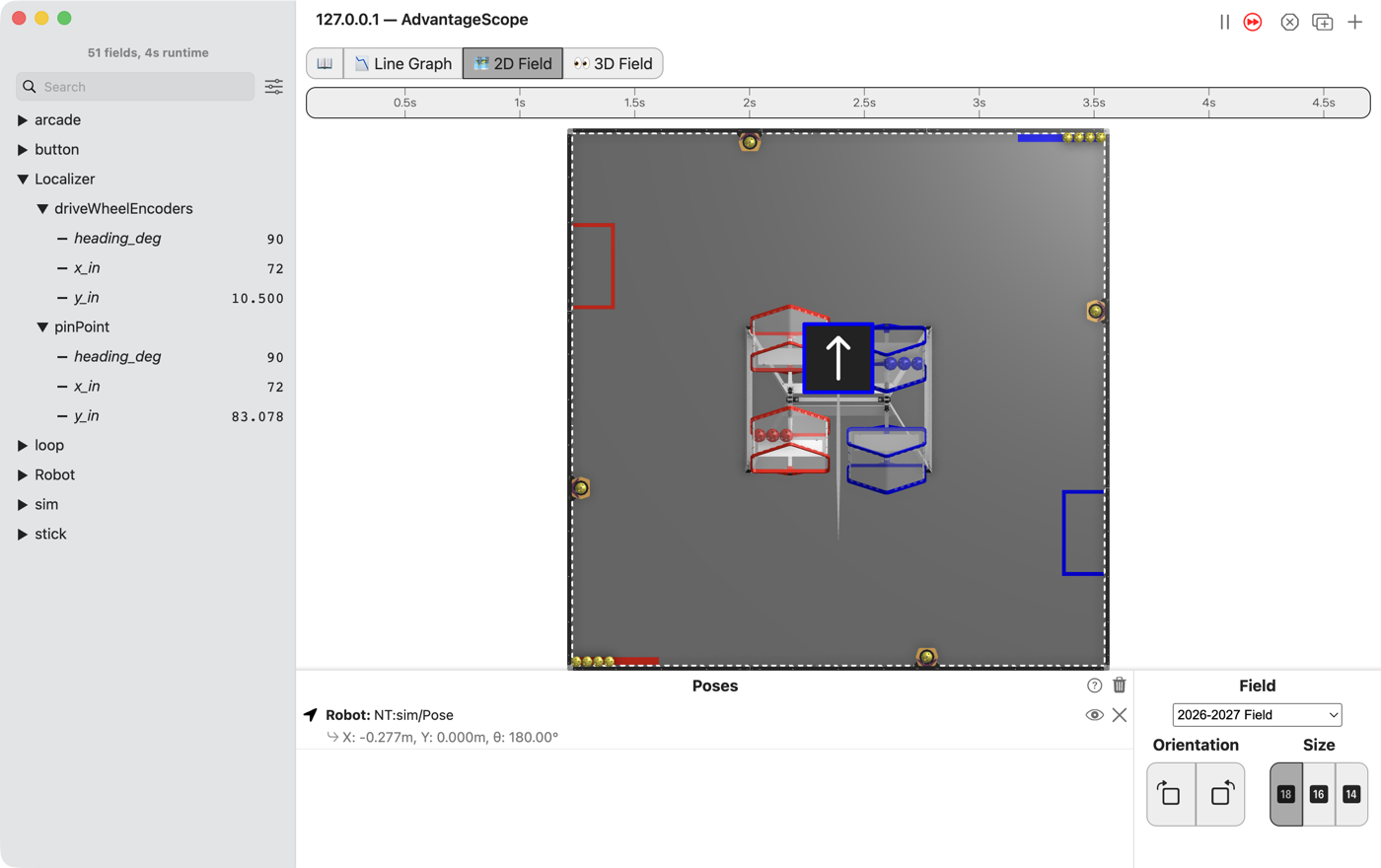

../_images/fig-l120-shadow-still.png

Your own localizer runs beside the robot’s own, and both are published so they can be graphed against each other. Yours counts how far the four drive wheels roll. The robot’s own counts the Pinpoint’s two pods. Neither is the truth. A tape measure is.

Before you start.

  • L110 is done, so the follower holds a real drivetrain, and L115 is done, so the Pinpoint is on the robot.

  • AdvantageScope is installed on the same laptop, and a gamepad is plugged into the laptop.

  • The robot on blocks, as in L050, the Driver Station, a tape measure, and about 3 m of clear floor for the last step.

The simulator turns each wheel’s encoder by how far the wheel rolls, at Constants.ticksPerInch, and turns the IMU with the robot. It has no slip, so a finished localizer follows the Pinpoint there more closely than it will on the robot. The tests check the arithmetic step by step.

the steps

L120S010: copy the two starters into mytry

This lesson has two files. One is the OpMode. The other is the localizer: the code that works out where the robot is.

Copy. In lessons, click L120CompareLocalizersOpMode once and copy it. Click mytry once and paste. In the Copy Class box, click OK. If Android Studio asks whether to add the file to Git, click Add. Do the same for L120EncoderLocalizer.

Check.

  • mytry holds L120CompareLocalizersOpMode and L120EncoderLocalizer.

L120S020: switch your copy on

Change. In L120CompareLocalizersOpMode, delete the line @Disabled, under the comment that names this step.

Check.

  • Under the step’s comment, the next line reads // 'public' so the robot can run this OpMode. 'public' allows access from any code.

L120S030: run your localizer beside the robot’s own

The robot’s own localizer reads the Pinpoint. A shadow localizer runs beside it. It is updated and published every loop, but it never steers the robot.

Change. In L120CompareLocalizersOpMode, find shadowLocalizers() and the comment that names this step. Under it, type:

        // When on L120S030, see
        // https://msb-stitt.github.io/ftc31459-26-27-biobuzz/guide/tasks/l120.html#l120s030
        // for what to do here.
        shadowLocalizers.add("driveWheelEncoders",
                new L120EncoderLocalizer(new HardwareWheelSource(hardware)));

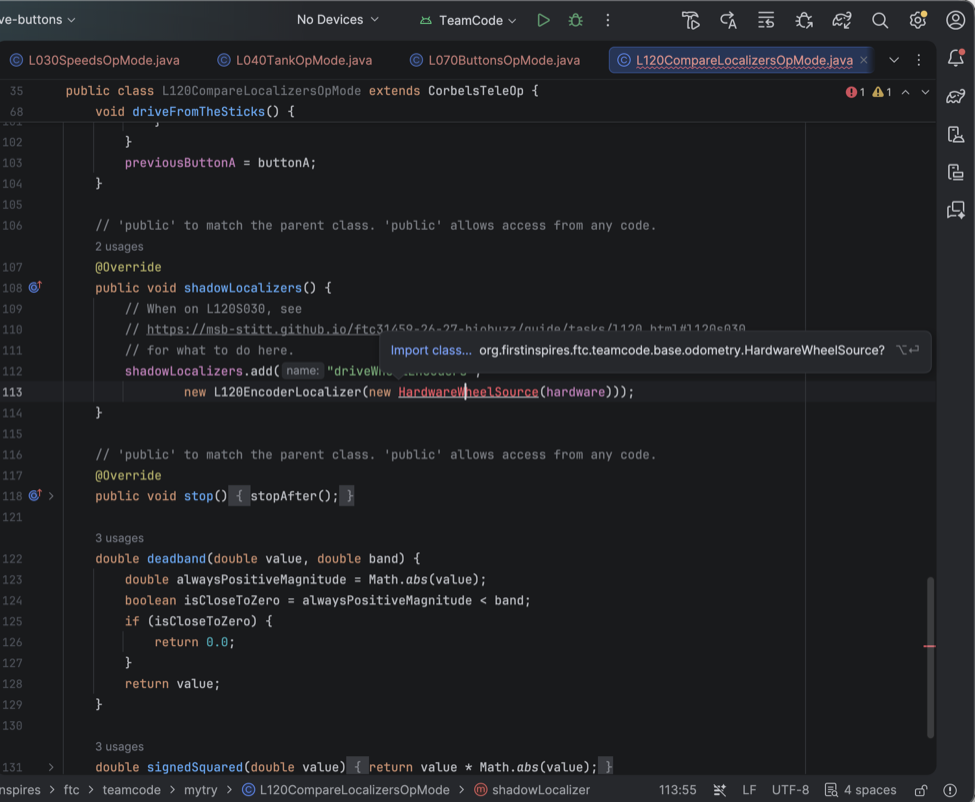

HardwareWheelSource turns red, because this file does not know where it lives yet.

  • Click HardwareWheelSource.

  • Press Option+Enter on a Mac, Alt+Enter on Windows, and pick Import class….

  • Android Studio adds an import line at the top of the file, and the red goes away.

../_images/fig-l120-import.png

Simulator. In the Terminal, run:

./gradlew :TeamCode:simRun --args="mytry.L120CompareLocalizersOpMode --pad"

AdvantageScope. Connect to the simulator as in L020. Open the Localizer folder, then driveWheelEncoders and pinPoint inside it.

Check.

  • Both start at x_in 72, y_in 10.5 and heading_deg 90.

  • Push the left stick forward. pinPoint/y_in climbs, and driveWheelEncoders stays where it started. Yours does not count anything yet.

x_in is how many inches the robot is from the left edge of the 2D Field, and y_in how many from its bottom edge. heading_deg is the way the robot’s nose points, and 90 is straight up the field. Since L040, the Poses list has called that same direction 180°. Both mean up the field.

L120S040: add up how far the wheels rolled

update runs once a loop. Each time, it can only see how far each wheel has rolled in total, so it remembers last loop’s numbers and takes them away.

The first loop has nothing to take away from, so it only remembers.

Change. Press Ctrl+C in the Terminal to stop the simulator. Open L120EncoderLocalizer. In update, find the comment that names this step. Under it, type:

        // When on L120S040, see
        // https://msb-stitt.github.io/ftc31459-26-27-biobuzz/guide/tasks/l120.html#l120s040
        // for what to do here.
        if (lastWheels == null) {
            lastWheels = wheels.clone();
            lastRawHeading = rawHeading;
            return;
        }

        double frontLeft = wheels[0] - lastWheels[0];
        double frontRight = wheels[1] - lastWheels[1];
        double backLeft = wheels[2] - lastWheels[2];
        double backRight = wheels[3] - lastWheels[3];

        double forward = (frontLeft + frontRight + backLeft + backRight) / 4.0;
        double strafe = (-frontLeft + frontRight + backLeft - backRight) / 4.0;

        x += forward;
        y += strafe;

Android Studio types the } for you when you press Enter after the {. Type the rest below it.

null means “nothing yet”. .clone() makes a copy, so next loop’s numbers do not change it. return leaves update early, until next loop.

The two long lines are L090’s table read backwards. There, three numbers made four wheel powers. Here, four wheel moves make forward and strafe again, in inches.

Check.

  • In the Terminal, run this. It prints 8 tests completed, 2 failed, then BUILD FAILED and more red lines. That is what failing tests look like here, and two are meant to fail now.

    ./gradlew :TeamCode:testDebugUnitTest --tests '*L120EncoderLocalizerTest*'

The two that fail are appliesTheHeadingSoSidewaysIsRelativeToTheRobot and setPoseMovesTheEstimateWithoutMovingTheRobot. Both are about which way the robot faces. That is the next step.

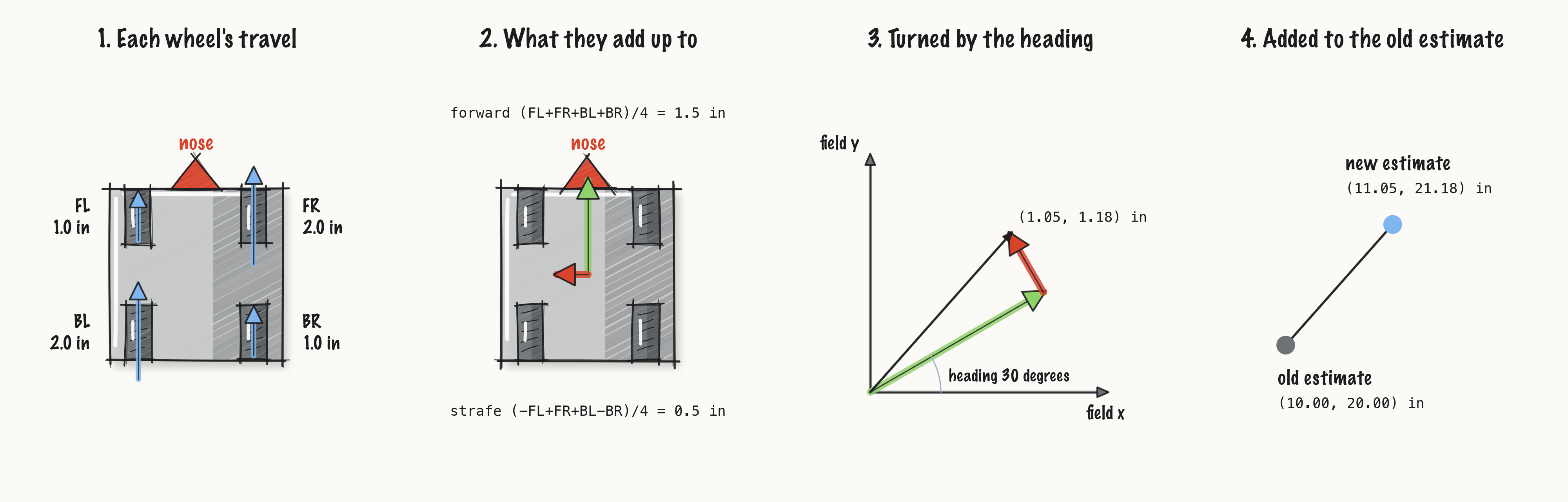

L120S050: turn the step to face the way the robot faces

../_images/fig-odometry-step.png

forward is forward for the robot, not for the field. The robot starts facing along the field’s y, so its forward is the field’s y. L120S040 added it to x.

Change. Delete the two lines x += forward; and y += strafe;. Find the comment that names this step. Under it, type:

        // When on L120S050, see
        // https://msb-stitt.github.io/ftc31459-26-27-biobuzz/guide/tasks/l120.html#l120s050
        // for what to do here.
        double heading = rawHeading + headingOffset;
        x += forward * Math.cos(heading) - strafe * Math.sin(heading);
        y += forward * Math.sin(heading) + strafe * Math.cos(heading);

Math.cos and Math.sin share the step out between x and y. Facing along x, cos is 1.0 and sin is 0.0, so forward all goes on x. Facing along y, cos is 0.0 and sin is 1.0, so forward all goes on y. In between, each gets a part.

heading counts in radians, not degrees. One whole turn is about 6.28 radians. Math.cos and Math.sin use radians.

Check.

  • Run the same test command again. It ends with BUILD SUCCESSFUL.

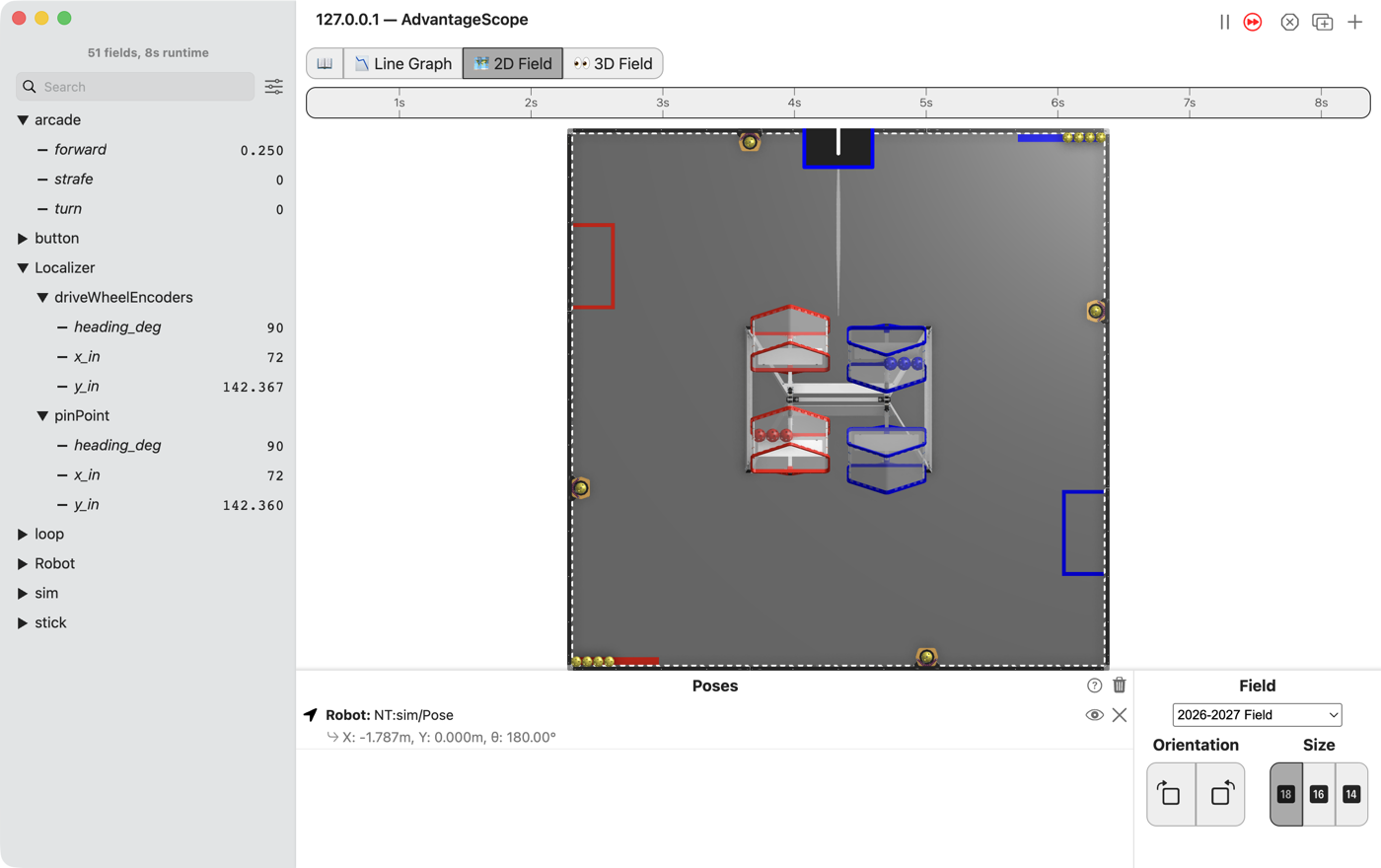

../_images/fig-l120-encoders-follow.png

Simulator. Run the command from L120S030 again, and connect AdvantageScope.

Check.

  • Push the left stick forward. This time driveWheelEncoders/y_in climbs with pinPoint/y_in, and the two stay within a tenth of an inch.

The simulator turns each wheel’s encoder by how far it rolls, so your localizer has something to count.

L120S060: drive it, then measure it

Robot. Stop the simulator. Send the code, run L120 Compare Localizers from the Driver Station, and watch it in AdvantageScope.

Check.

  • Drive about 80 in straight ahead and stop. Both y_in numbers moved, and they do not quite agree.

  • Measure how far the robot really went with the tape measure.

Then put the robot on the blocks and push the left stick forward. The wheels spin, and the robot does not go anywhere. driveWheelEncoders walks off across the field. pinPoint stays put, because its pods are off the floor too.

No gamepad. --args="mytry.L120CompareLocalizersOpMode --left_stick_y=-0.5" drives forward for the picture at the top, and for L120S050’s.

If it didn’t, and driveWheelEncoders is missing from the Localizer folder in L120S030, the two lines are not in shadowLocalizers(). LessonsTest.l120_theEncoderLocalizerRunsAlongsideAndIsLogged fails with the shadow localizer is logged: and the list of names that were published.

If it didn’t, and countsStrafingLeft fails with left is +y when facing +x, a sign in the strafe line is wrong. With the sign in front of frontRight flipped, it reads expected:<12.0> but was:<6.0>, and three other tests fail with it.

If it didn’t, and all 8 tests fail with Cannot load from double array because "this.lastWheels" is null, the first-loop if is missing.

What you just did. That is dead reckoning: believe the wheels, and add up every step. It has no other source, so a wheel that spins without carrying the robot moves the estimate. The test aWheelThatSlipsIsSimplyBelieved shows it on a laptop: one wheel rolling 24 in on its own moves the estimate 6 in. The Pinpoint’s pods only measure and never push, so they slip less. That is the case for having them.

The heading here is the one at the end of each step. While driving and turning at once, the middle of the step would be closer. Taking the end needs no subtraction of two headings, so a turn through the back of the circle needs no care.

The localizer reports a speed of zero. Only x_in, y_in and heading_deg are published for a shadow, so nothing reads its speed.

Where next. L125 drives 24 inches on its own.
